Friday, August 29, 2008

Nikon D90 (12.3-megapixel)

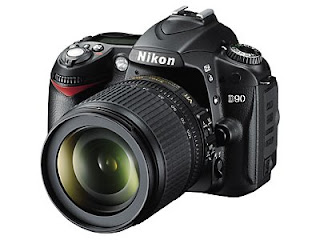

Nikon D90 SLR Digital Camera (12.3MP, DX Format, 3" LCD, Live View, Video, 4.5fps) (Body Only)

Nikon D90 comes with 12.3-megapixel image quality, broad control and the world’s first digital SLR movie function combine to deliver unsurpassed creative freedom in a D-SLR.




The new D90 incorporates an optional feature called Universal Vibration Reduction (uVR). This turns all lenses into uVR lenses, and offers a 10-stop advantage.

This means a person using a 500mm lens, who would normally have to shoot at 1/500th of a second, can shoot at 2 seconds when uVR is enabled.

The new uVR system isn't sensor based, and instead requires one of the three optional vertical battery grips (see below). In this case, the MB-D90a is required. This grip provides all the normal controls and extended battery life of a regular grip. It also holds 8 EN-EL4a batteries, along with a step-up transformer.

With uVR enabled, the combined power of the batteries sends a current through the step-up transformer. This then delivers a 110 volt shock through metal pads around the grip. The resulting electrical shock matches the shutter speed (maximum of 10 seconds).

The shock causes a very stable clenching of the photographer's muscles while the shutter is open, simulating the stability of a tripod.

Nikon D90 Feature Highlights

  • Newly designed Nikon DX-format CMOS image sensor with wide ISO sensitivity range with low noise

  • EXPEED for smooth tones, rich colors and fine details

  • D-Movie: the world’s first* D-SLR movie mode

  • Scene Recognition System integrated with Face Detection System

  • Easy-to-use Live View mode

  • Picture Control System: Customize the visual style of your images

  • Active D-Lighting for smooth tone reproduction in high-contrast lighting

  • Versatile, practical 11-point AF system

  • Bright pentaprism viewfinder featuring frame coverage of approx. 96%

  • Advanced Scene Modes for superior image quality

  • Extensive palette of in-camera Retouch Menus

  • Engineered for precision and durability


Nikon D90 Specifications

Type Single-lens reflex digital camera
Lens mount Nikon F mount (with AF coupling and AF contacts)
Effective picture angle Approx. 1.5 x lens focal length (Nikon DX format)
Effective pixels 12.3 million
Image sensor 23.6 x 15.8 mm CMOS sensor
Total pixels 12.9 million
Dust-reduction system Image Sensor Cleaning, Image Dust Off reference data (optional Capture NX 2 required)
Image size (pixels)
4,288 x 2,848 [L], 3,216 x 2,136 [M], 2,144 x 1,424 [S]
File format • NEF (RAW)
• JPEG: JPEG-Baseline compliant with fine (approx. 1:4), normal (approx. 1:8), or basic (approx. 1:16) compression
• NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats
Picture Control System Can be selected from Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; storage for up to nine custom Picture Controls
Media SD memory cards, SDHC compliant
File system DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif 2.21 (Exchangeable Image File Format for Digital Still Cameras), PictBridge
Viewfinder Eye-level pentaprism single-lens reflex viewfinder
Frame coverage Approx. 96% horizontal and 96% vertical
Magnification Approx. 0.94 x (50mm f/1.4 lens at infinity; -1.0 m-1)
Eyepoint 19.5 mm (-1.0 m-1)
Diopter adjustment -2 to +1 m-1
Focusing screen Type B BriteView Clear Matte screen Mark II with focus frame (framing grid can be displayed)
Reflex mirror Quick-return type
Depth-of-field preview When depth-of-field preview button is pressed, lens aperture is stopped down to value selected by user (A and M modes) or by camera (other modes)
Lens aperture Instant return, electronically controlled
Compatible lenses • DX AF Nikkor: All functions supported
• Type G or D AF Nikkor: All functions supported (PC Micro-Nikkor does not support some functions). IX-Nikkor lenses not supported.
• Other AF Nikkor: All functions supported except 3D color matrix metering II. Lenses for F3AF not supported.
• AI-P Nikkor: All functions supported except 3D color matrix metering II and auto focus.
• Non-CPU: Autofocus not supported. Can be used in exposure mode M, but exposure meter does not function. Electronic rangefinder can be used if lens has a maximum aperture of f/5.6 or faster.
Shutter type Electronically controlled vertical-travel focal-plane shutter
Shutter speed 1/4,000 to 30 s in steps of 1/3 or 1/2 EV, Bulb
Flash sync speed X = 1/200 s; synchronizes with shutter at 1/200s or slower
Release modes Single-frame, continuous low speed, continuous high speed, self-timer, delayed remote, quick-response
Frame advance rate Continuous high speed: up to 4.5 fps, continuous low speed: 1-4 fps
Self-timer Can be selected from 2, 5, 10 and 20 s duration
Exposure metering TTL exposure metering using 420-pixel RGB sensor
Exposure method • Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
• Center-weighted: Weight of 75% given to 6-, 8- or 10-mm circle in center of frame
• Spot: Meters 3.5-mm circle (about 2% of frame) centered on selected focus point
Exposure range (ISO 100 equivalent, f/1.4 lens, 20°C/68°F) • Matrix or center-weighted metering: 0-20 EV
• Spot metering: 2-20 EV
Exposure meter coupling CPU
Exposure modes Auto modes (auto, auto [flash off]), Advanced Scene Modes (Portrait, Landscape, Sports, Close-up, Night Portrait), programmed auto with flexible program (P), shutter-priority auto (S), aperture-priority auto (A), manual (M)
Exposure compensation ±5 EV in increments of 1/3 or 1/2 EV
Exposure bracketing 2 or 3 frames in steps of 1/3, 1/2, 2/3, 1 or 2 EV
Exposure lock Luminosity locked at detected value with AE-L/AF-L button
ISO sensitivity (Recommended Exposure Index) ISO 200 to 3200 in steps of 1/3 EV, can also be set to approx. 0.3, 0.7 or 1 EV (ISO 100 equivalent) below ISO 200, or to approx. 0.3, 0.7 or 1 EV (ISO 6400 equivalent) over ISO 3200, ISO sensitivity auto control available
Active D-Lighting Can be selected from Auto, Extra high, High, Normal, Low or off
Active D-Lighting bracketing 2 frames
Autofocus Nikon Multi-CAM 1000 autofocus module with TTL phase detection, 11 focus points (including 1 cross-type sensor) and AF-assist illuminator (range approx. 0.5-3 m/1 ft. 8 in.-9 ft. 10 in.)
Detection range -1 to +19 EV (ISO 100 equivalent, 20°C /68°F)
Lens servo • Autofocus: Single-servo AF (S), Continuous-servo AF (C), Auto-servo AF (A), Predictive focus tracking automatically activated according to subject status in single- and continuous-servo AF
• Manual (M): Electronic rangefinder supported
Focus point Can be selected from 11 focus points
AF-area modes Single-point AF, dynamic-area AF, auto-area AF, 3D-tracking (11 points) AF
Focus lock Focus can be locked by pressing shutter-release button halfway (Single-servo AF) or by pressing AE-L/AF-L button
Built-in flash Auto, Portrait, Close-up, Night Portrait modes: Auto flash with auto pop-up
P, S, A, M: Manual pop-up with button release
Guide number (m/ft.) at 20°C/68°F • At ISO 200: Approx. 17/56, 18/59 with manual flash
• At ISO 100 equivalent: Approx. 12/39, 13/43 with manual flash
Flash control • TTL: i-TTL balanced fill-flash and standard i-TTL flash for digital SLR using 420-pixel RGB sensor are available with built-in flash, SB-900, SB-800, SB-600 or SB-400
• Auto aperture: Available with SB-900, SB-800 and CPU lenses
• Non-TTL auto: Supported flash units include SB-900, SB-800, SB-28, SB-27 or SB-22s
• Range-priority manual: Available with SB-900 and SB-800
Flash modes Front curtain sync, slow sync, rear-curtain sync, red-eye reduction, red-eye reduction with slow sync
Flash compensation -3 to +1 EV in increments of 1/3, or 1/2 EV
Flash bracketing 2 or 3 frames in steps of 1/3, 1/2, 2/3, 1 or 2 EV
Flash-ready indicator Lights when built-in flash or SB-900, SB-800, SB-600, SB-400, SB-80DX, SB-28DX, or SB-50DX is fully charged; blinks for 3 s after flash is fired at full output in i-TTL or auto aperture modes
Accessory shoe Standard ISO 518 hot-shoe contact with safety lock
Nikon Creative Lighting System (CLS) Advanced Wireless Lighting supported with built-in flash, SB-900, SB-800, or SU-800 as commander and SB-900, SB-800, SB-600 or SB-R200 as remotes; Auto FP High-Speed Sync and modeling illumination supported with all CLS-compatible flash units except SB-400; Flash Color Information Communication and FV lock supported with all CLS-compatible flash units
White balance Auto (TTL white-balance with main image sensor and 420-pixel RGB sensor); 12 manual modes with fine-tuning; color temperature setting; preset manual white balance
White balance bracketing 2 or 3 frames in steps of 1, 2 or 3
Live View AF modes Face priority AF, wide area AF, normal area AF
Live View focus Contrast-detect AF anywhere in frame (camera selects focus point automatically when face priority AF is selected)
Movie image size (pixels) 1,280 x 720/24 fps, 640 x 424/24 fps, 320 x 216/24 fps
Movie file format AVI
Movie compression format Motion-JPEG, with monaural sound
LCD monitor 3-in., approx. 920k-dot (VGA), low-temperature polysilicon TFT LCD with 170° viewing angle, approx. 100% frame coverage, and brightness adjustment
Playback function Full-frame and thumbnail (4, 9 or 72 images or calendar) playback with playback zoom, movie playback, Pictmotion, slide show, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
USB Hi-Speed USB
Audio video output Can be selected from NTSC and PAL; simultaneous playback from both the audio video output and on the LCD monitor available
HDMI output HDMI Mini connector; camera monitor turns off when HDMI cable is connected
Accessory terminal • Remote Cord MC-DC2 (Optional)
• GPS Unit GP-1 (Optional)
Supported languages Chinese (Simplified and Traditional), Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish
Battery One Rechargeable Li-ion Battery EN-EL3e
Battery pack Multi-Power Battery Pack MB-D80 (optional) with one or two Rechargeable Li-ion Battery EN-EL3e or six R6/AA-size alkaline, Ni-MH, lithium or nickel-manganese batteries (Battery Holder MS-D200 is required when using R6/AA-size batteries.)
AC adapter AC Adapter EH-5a (optional)
Tripod socket 1/4 in. (ISO 1222)
Dimensions (W x H x D) Approx. 132 x 103 x 77 mm/5.2 x 4.1 x 3.0 in.
Weight Approx. 620 g/1 lb. 6 oz. without battery, memory card, body cap or monitor cover
Temperature 0-40°C/32-104°F
Humidity Less than 85% (no condensation)
Supplied accessories (may differ by country or area) Rechargeable Li-ion Battery EN-EL3e, Quick Charger MH-18a, Eyepiece Cap DK-5, Rubber Eyecup DK-21, USB Cable UC-E4, Audio Video Cable EG-D2, Camera Strap AN-DC1, LCD Monitor Cover BM-10, Body Cap, Accessory Shoe Cover BS-1, Software Suite CD-ROM


Nikon D90 SLR Digital Camera (12.3MP, DX Format, 3" LCD, Live View, Video, 4.5fps) (Body Only)
